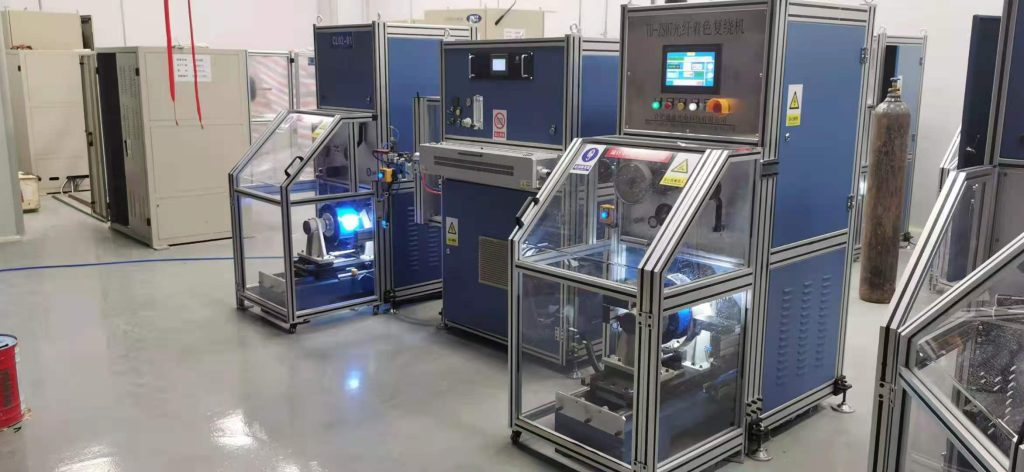

Name: Optical fiber coloring machine
Application: The machine is mainly used to color the surface of optical fibers and makes it easy to identify the multi-fibers within the loose tube. Also is used to rewind fibers.- Brandfangyang
- Originjiangsu china
- CertificationISO
Main Parameters:
| No. | Item | Technical data |
| 1 | Structure speed | 3200 m/min |
| Rewinding speed | ≤3000 m/min | |
| Coloring speed | ≤3000 m/min | |
| 2 | Thickness of coloring layer | 3 – 5 μm |
| 3 | Pay-off tension | 0.3N – 1.5N (±0.05N) |
| 4 | Take-up tension | 0.3N – 1.5N (±0.05N) |
| 5 | Traversing pitch | 0.1 – 1.0 mm (±0.01mm) |
| 6 | Additional loss after coloring | ≤0.02 dB/km (SM, 1310nm, 1550nm) |
| 7 | Optical fiber reel size | 25 km, 50 km, 63 km, 100 km |
| 8 | Shaft bore diameter | 25.4 mm |
| 9 | Reel weight | 15 kg |
| 10 | Accuracy of the counter | ≤0.1% |
| 11 | Additional loss | ≤0.01 dB/km (SM, 1310nm, 1550nm) |
| 12 | Nitrogen flow | 15 – 45 ltrs./min |
| 13 | Nitrogen purity | ≥99.99% |
| 14 | Air pressure required | 0.5 MPa |
| 15 | Operation temperature | 20 – 25℃ |
| 16 | Humidity | ≤85% |
| 17 | Lamp power | 7.5 kW + 7.5 kW |
| 18 | Central height of the line | 1 m |
| 19 | Voltage | AC 380V +/-5%, 50 Hz, 3-PH+N+E |
| 20 | Machine Color | As per user’s request |
