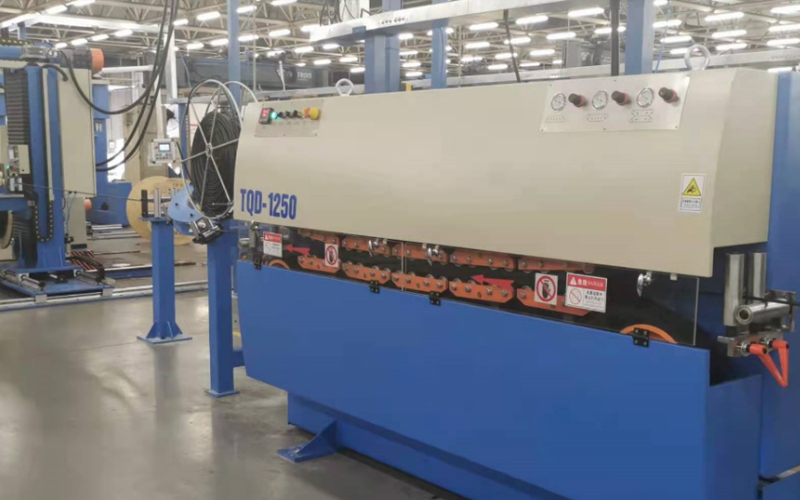

Name: Sheathing Line

The line is used to extrude sheathing for wire-armored optical fiber cables.

Main Parameters:

No.	Item	Technical data
1	Diameter of cable core	Ф5-25mm
2	Diameter of cable	Max 30mm
3	Thickness of cable wall	1.0-3.5mm
4	Line structure speed	150m/min
5	Line production speed	120m/min (cable dia.: 10mm)
6	Additional attenuation	0.01dB/km(at 1310 and 1550 nm)
7	Pay-off reel size	PN800-PN1800
8	Take-up reel size	PN1000-PN2000
9	Length metering accuracy	±0.2%
10	Diameter of screw	100mm
11	L/D	25:1
12	Main extruder output	Max 360kg/h
13	Motor for main extruder	110kw
14	Heating power	26kw
15	Average diameter tolerance over jacket	±0.10mm(cable diameter:10mm)
16	Line center height	1000mm
17	Electricity	380v±5% ,50Hz
18	Pressured air	5Pa
19	Center height of the line	1000mm
20	Line length	about 67m
21	Line direction	Confirmed by buyer
22	Color of the line	Confirmed by buyer
23	Total weight	26T
