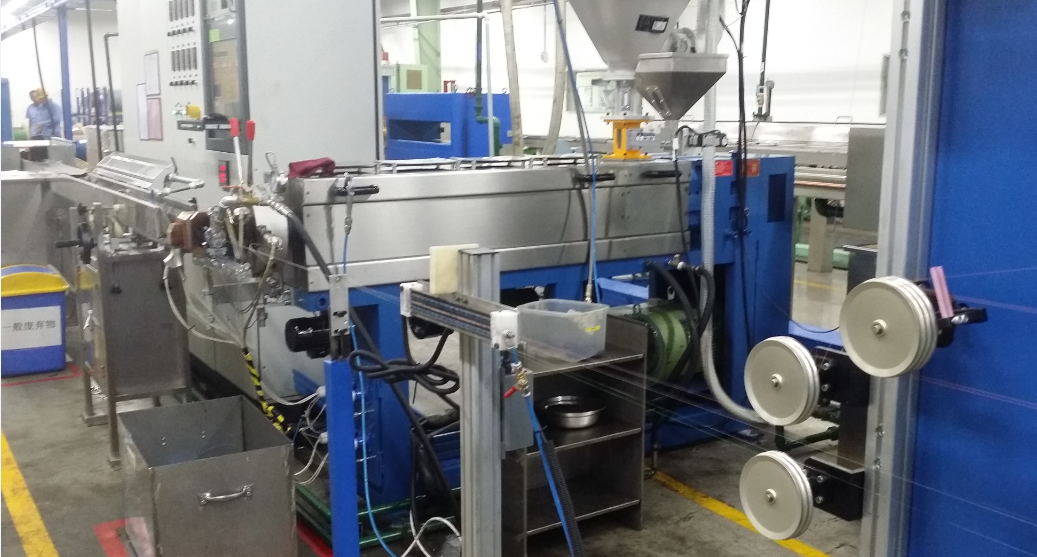

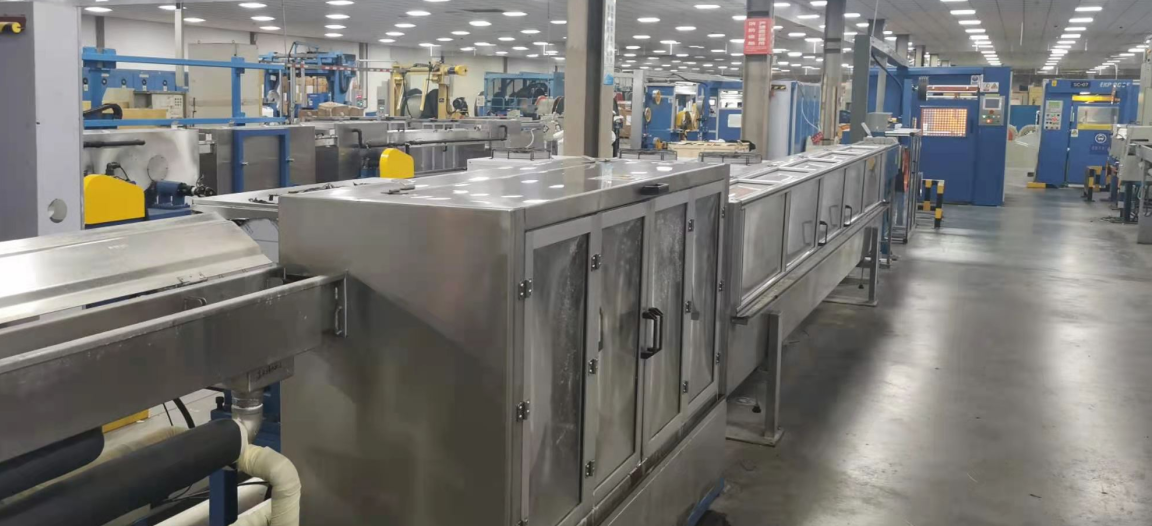

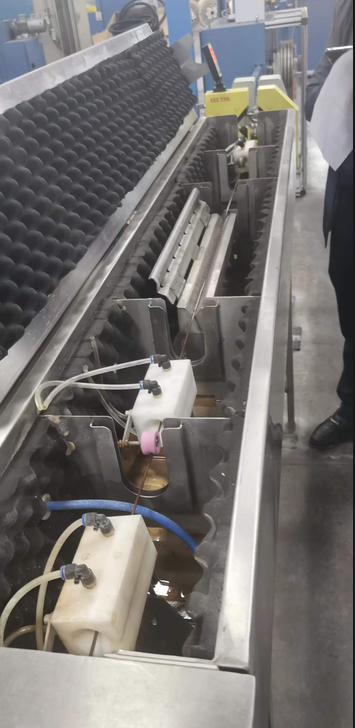

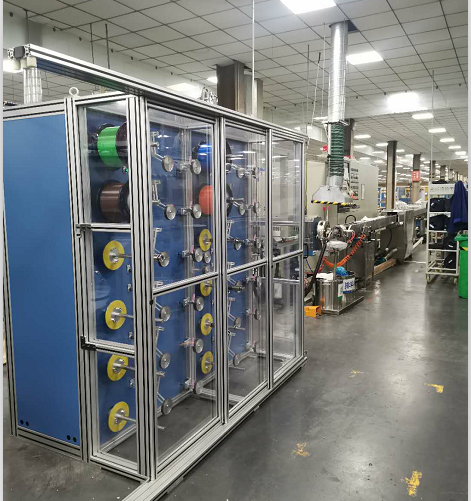

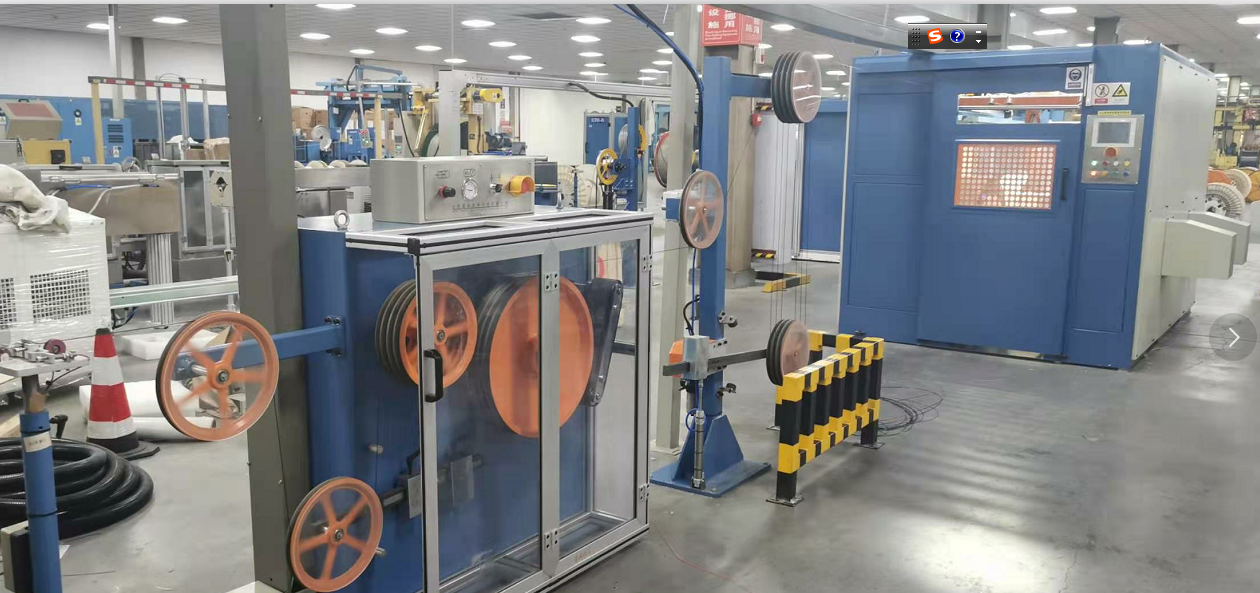

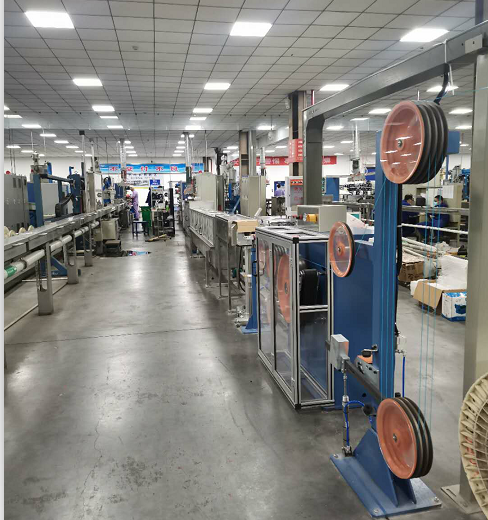

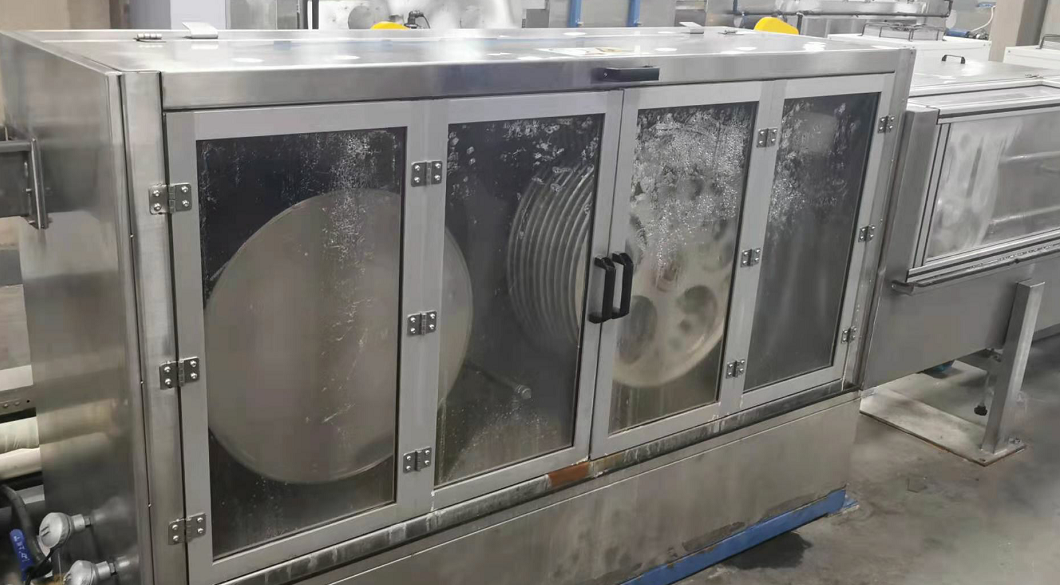

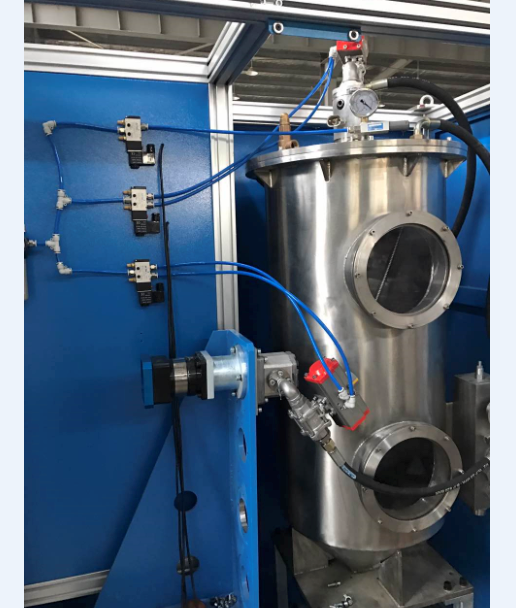

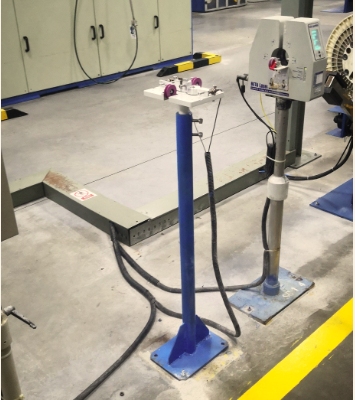

Name: Optical Fiber Secondary Coating Line
The line is used to extrude loose tube in which 12 optical fibers are contained. The extruding material can be PBT, PE.- Brandfangyang
- Originjiangsu china
- CertificationISO
Main Parameters:
| No. | Item | Technical data |
| 1 | Optical fiber number | 12 |
| 2 | Pay-off tension | (0.3-1.2N)±0.05N |
| 3 | Optical fiber reel size | Ф236mm×Ф25.4mm×108mm（25.2km） |
| Ф267mm×Ф25.4mm×180mm（50.4km） | ||
| 4 | Line structure speed | 1000m/min |
| 5 | Operation speed | ≤800m/min (dia.Ф1.8mm with jelly) |
| 6 | Extruded tube dia. | (Ф1.2-Ф4.0)mm±0.05 |
| 7 | Extruded material | PBT |
| 8 | Hot water temperature | 70℃±2℃ |
| 9 | Take up reel size | PN800mm |
| 10 | Take-up tension | 2.5-6.5N |
| 11 | E.F.L range | 0-0.6% |
| 12 | Extra-attenuation | ≤0.02dB/km (1310nm,1550nm) |
| 13 | Accuracy of the counter | ±0.2% |
| 14 | Centering height | 1000mm |
| 15 | Line direction | Confirmed by the buyer |
| 16 | Line color | Confirmed by the buyer |
| 17 | Overall dimension | 30m×3m×3m |
| 18 | Installation power | 105Kw |
| 19 | Total weight | 14T (approximately) |
| 20 | Power | 380V/50Hz/3Ph |
Case show
